Design Recommendations for Central Inverters in Utility-Scale Solar Projects
When planning utility-scale solar energy projects, many stakeholders—developers, EPCs, and others—often neglect the importance of optimizing central inverters. However, the careful placement and design of these inverters play a critical role in maximizing the efficiency and output of large-scale solar photovoltaic systems. Neglecting this aspect can lead to increased costs due to inefficient material usage and reduced system performance. This, in turn, may result in lower power generation and, in some cases, higher voltage drops throughout the system.

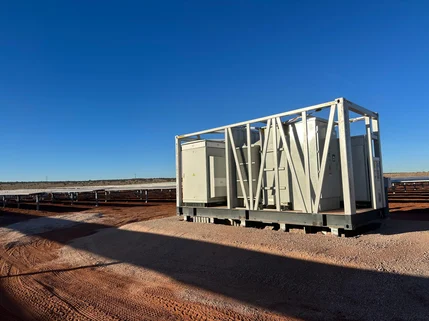

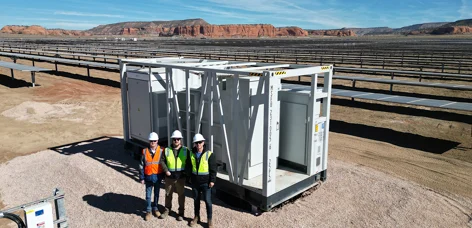

## Strategic Placement and Design of Central Inverters
### Physical Placement Considerations:

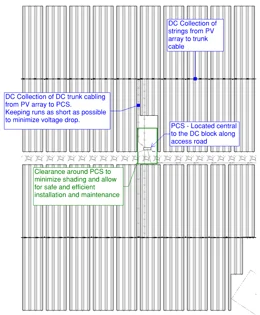

- **Access and Maintenance:** Positioning central inverters near access roads within the solar farm is a smart strategy. This arrangement makes it easier for routine operations and maintenance (O&M) tasks while simplifying the construction process.
- **Equal DC String Distribution:** Ensuring each DC string is equidistant from the inverter minimizes voltage loss across individual strings. This consistent distribution maintains the overall efficiency of the power conversion process.
- **Height Considerations for PCS:** During the design phase, it’s essential to account for the height of the Power Conversion System (PCS). Since PCS units can be tall and placed on elevated pads, they might cast shadows, negatively affecting solar panel efficiency.
- **Pad Selection:** The ideal pad type depends on the specific site conditions. Options include concrete pads, steel piles, helical steel piles, ground screws, and more.
### Electrical Design Elements:
- **Proximity to Roads for Medium Voltage Components:** Placing the medium voltage section of the inverter close to access roads allows the electrical wiring to run parallel to the medium voltage paths. This setup reduces complexity and minimizes interference with other circuits.
- **Inverter Loading Ratio (ILR):** The ILR, which compares the reduced AC size of the PCS to its DC size, should ideally exceed 1.0. Keeping this ratio above the recommended value ensures the PCS operates optimally and fulfills the Point of Interconnection (POI) requirements. Adhering to the correct ILR ensures inverters use their full capacity, preventing load flow issues and meeting utility company commitments.
- **Load Flow Analysis:** Conducting a detailed load flow analysis confirms whether the projected power delivery aligns with utility agreements. It also checks if the number of inverters installed is sufficient to meet demand, avoiding potential penalties for under-delivery.
